No. 04508

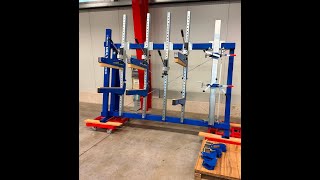

Gluing clamp BARTH MULTI-Presse RP 2501
Used, year of construction 2013, mint condition
Maximum clamping dimensions:
- for gluing approx. 2400 x 1580 mm LH
- for frame approx. 2110 x 1580 LH
- for carcass approx. 2110 x 1370 LH
Base frame with 90° stop
4 pressing units, each with 1 manual hydraulic cylinder
2-stage pump system: quick stroke / pressure stroke
Stroke 100 mm
Maximum pressing force 2000 kg
Side pressure device RPW/RP, with 2 rack and pinion gears
- Stroke 140 mm
- Self-locking
- Maximum pressing force approx. 1000 kg
3 carcass top clamps
3 carcass supports
Mitre gluing device, 4 angles
Base frame powder-coated, press arms galvanized
Incl. technical documentation
Transport dimensions approx. 2600 x 900 x 2300 mm LWH
Weight approx. 500 kg
To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment
Sold as is
Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Terms of payment: Prices plus VAT, payment before collection or dispatch
Terms of delivery: ex warehouse
Our general terms and conditions apply, available on the Internet at www.kauz-maschinen.de
Please pay particular attention to Article 9 regarding complaints and returns!
